Power – Homes

04/07/2020

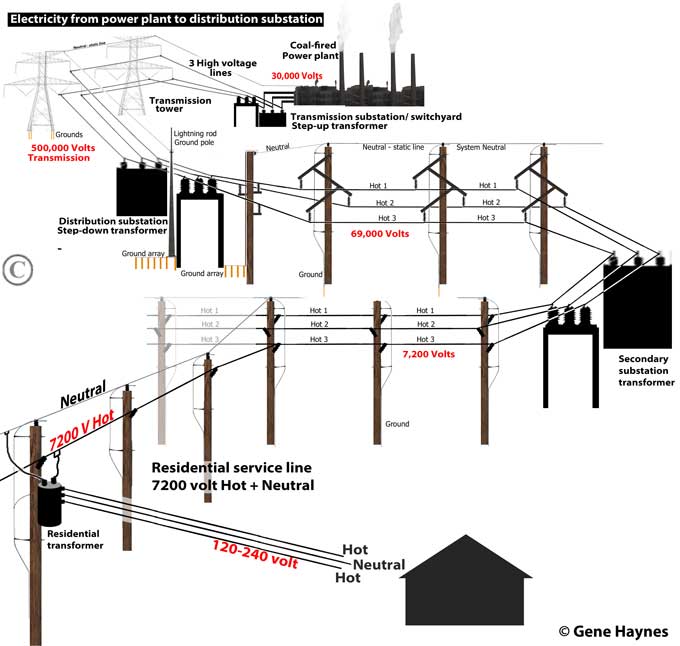

power plant to house electricity

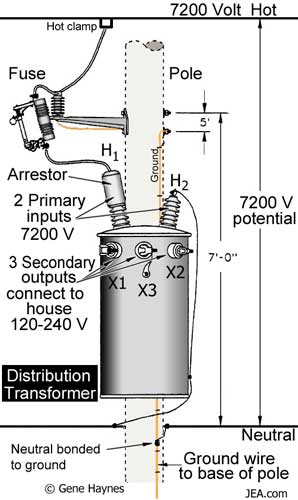

distribution transformer

Typical Pole 7200V to 240V Transformer outside a house

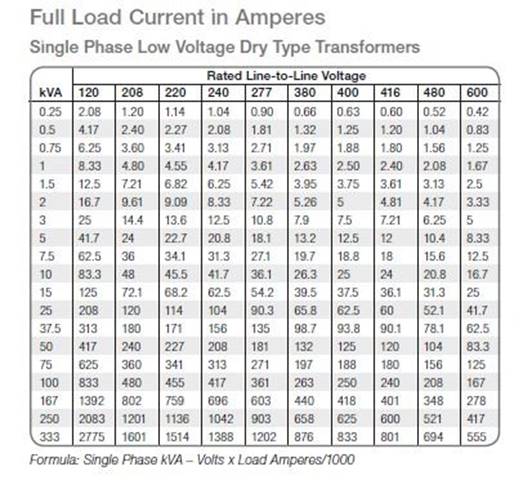

https://www.se.com/library/SCHNEIDER_ELECTRIC/SE_LOCAL/US/FA101694/1%20phase%20transformer%20chart.JPG

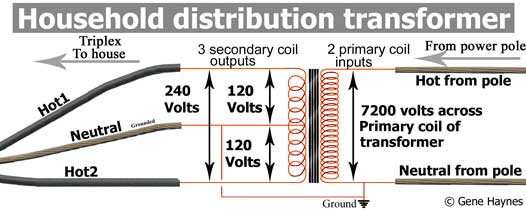

120-240Volt transformer

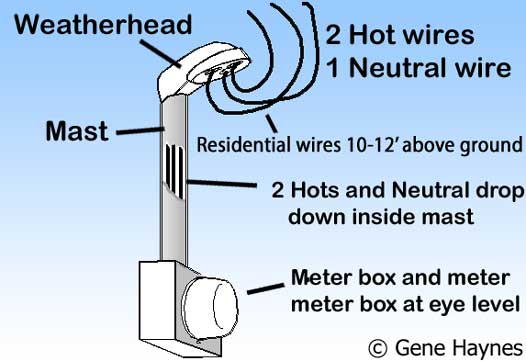

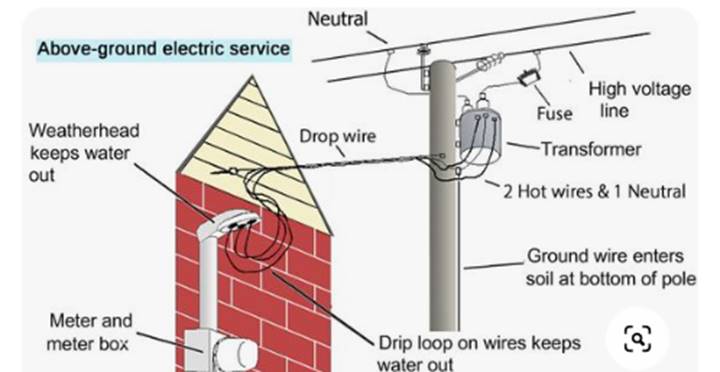

Meter box and weatherhead

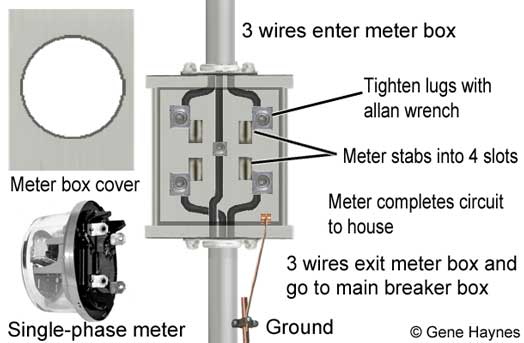

Meter and meter box

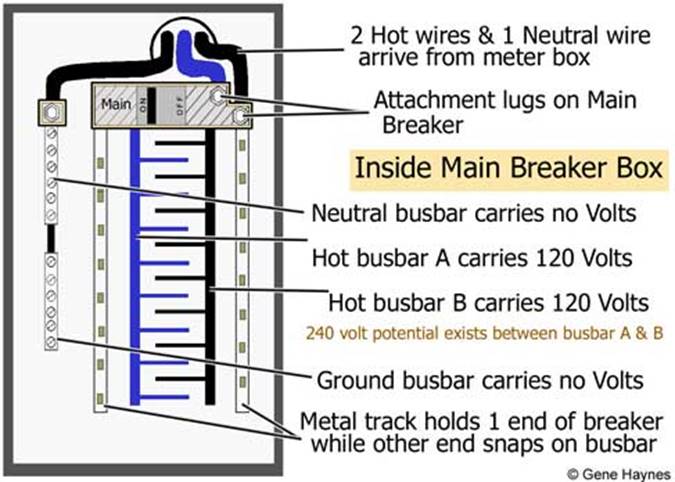

Inside Main Breaker Box

In household electricity, both Hot busbars are identical except out of phase with each other.
With 120 volts a single wave oscillates up and down.
Using 240Volts doubles the wave since each wave is out of phase with the other.

Phasing and voltage is determined by the transformer.

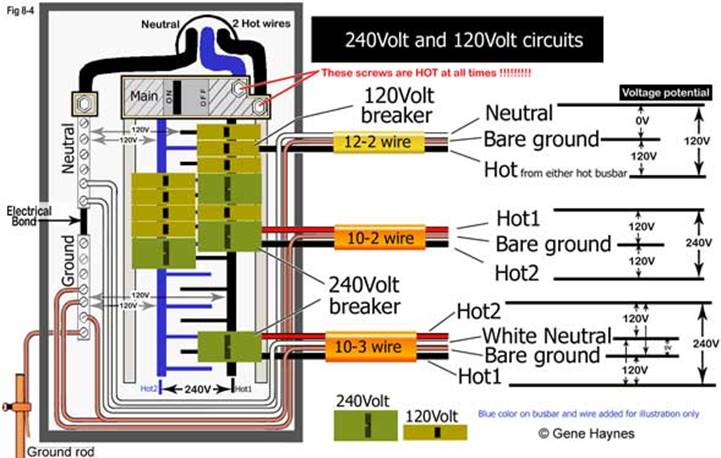

main breaker box

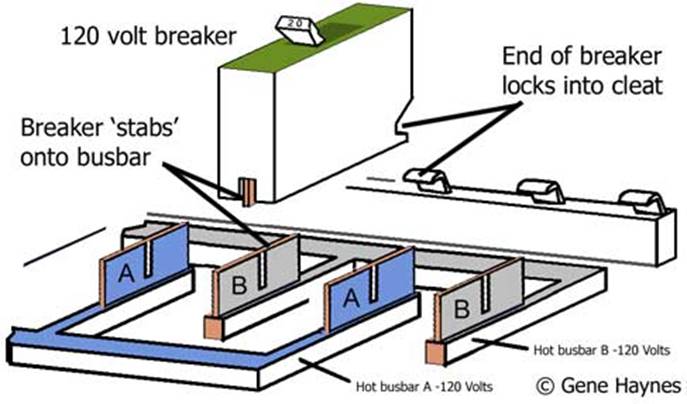

Install circuit breaker
